DFB Laser Drivers

QDLaser offers ns and ps Laser Driver boards for their DFB Laser diodes. The driver board can be used in CW mode or in a Pulsed mode. The driver board can be control via USB ports to set parameters such as driver current, pulse width, frequency repetition rate, etc. The options for the maximum drive current are either 200mA or a 2A. QDLaser’s Picosecond Gain-Switched boards produce either 50ps or 15ps pulse widths over a broad band of pulse repetition frequencies (ie. kHz to GHz). Pulse driver board to operate DFB/SOA in either picosecond or nanosecond are available.  Most parameters can controlled by PC software via a USB interface. A single +5V power supply is required for the driver operation.

Nanosecond Pulsed and CW Drivers

200 mA Drive Current, 1-10 ns Pulse Width Drivers

Parameters

QC2D1x61
click to view PDF

QC8D1x61
click to view
PDF

Type

Board

Module

Optical Pulse Width (ns)

1-9

1-9

Electrical Pulse Width (ns)

1-9

1-9

Pulse Repetition Rate

12kHz - 250MHz

12kHz - 250MHz

Maximum Drive Current

200 mA

200 mA

2 A Drive Current, 5-133 ns Pulse Width Drivers

Parameters

QC9D1x6x
click to view PDF

Type

Board

Optical Pulse Width (ns)

5 to 133

Electrical Pulse Width (ns)

5 to 133

Pulse Repetition Rate

3kHz to 1MHz

Maximum Drive Current

2A

50 & 15 ps Gain Switched Drivers

50 Picosecond Pulse Driver

Parameters

QC2D1x61
click to view PDF

QC6D1x61
click to view
PDF

Type

Board

Board

Pulse Width

Adjustable

Fixed

Optical Pulse Width

50 ps -1 ns

50 ps

Electrical Pulse Width

300 ps -1 ns

300 ps

Pulse Repetition Rate

12kHz - 250MHz

3kHz - 6MHz

Maximum Drive Current

200 mA

200 mA

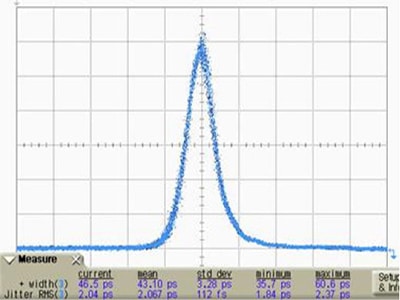

50 ps Pulse Shape

15 Picosecond Pulse Driver

Parameters

QCED106G
click to view PDF

Type

Board

Pulse Width

Adjustable

Optical Pulse Width (ns)

15 ps

Electrical Pulse Width (ns)

100 ps

Pulse Repetition Rate

12 kHz - 1 MHz

Maximum Drive Current

2 A

15 ps Pulse Shape

Pulsed DFB/SOA Driver

Parameters

QCBA1x61
click to view PDF

Type

Board

Pulse Width

Adjustable

Optical Pulse Width (ns)

50 ps - 9 ns

Electrical Pulse Width (ns)

300 ps - 9 ns

Pulse Repetition Rate

12 kHz - 200 MHz

Maximum Drive Current

100 mA

CW Mode Only Drivers

Parameters

QCBA1x61
click to view PDF

Type

Board

Mode

CW Only

Optical Pulse Width (ns)

N/A

Electrical Pulse Width (ns)

CW

Pulse Repetition Rate

N/A

Maximum Drive Current

10 - 500 mA
